Making Cross Hairs from a Spider Web.

Several of my 100 plus years old instruments still have the original cross hair spider webs intact.

Spider webs were also used in artillery gun sights during WW2 as they were less susceptible than wire to breaking under constant vibration.

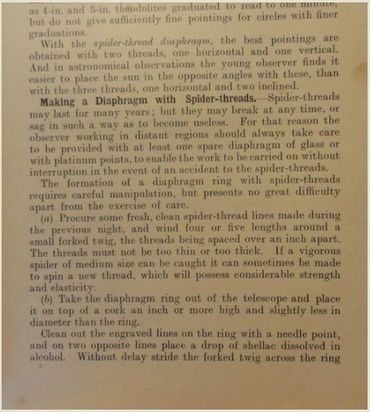

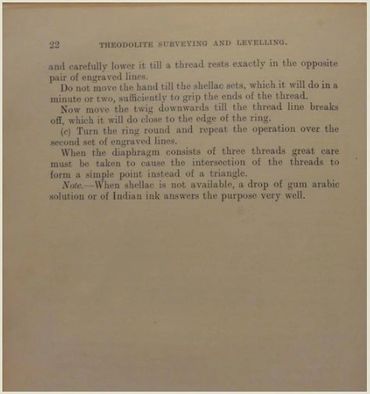

See the pages below from an old text book.


No images or content is to be used without my written permission
